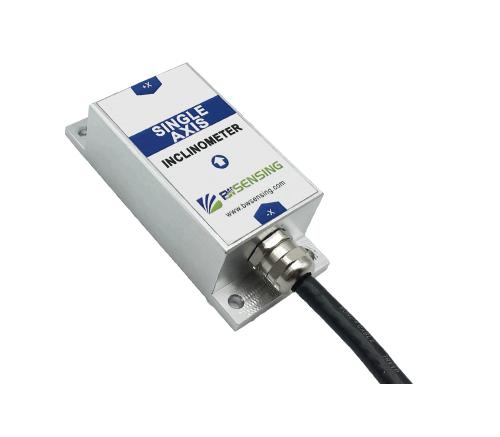

● Single axis tilt measurement
● Resolution :0.001°
● Output :0-5V/0- 10V optional
● Power supply: 12 ~36V
● Highest accuracy :0.01°
● Range:±180°
● Communication code: RS232
● IP67 protection level
Parameter | Condition | Minimum | Typical Value | Maximum | |
Power Voltage(V) | 12 | 36 | |||
Working Current(mA) | No load | 20 | 50 | 60 | |
Output load (kΩ) | Resistive | 10 | |||
Output load (nF) | Capacitive | 20 | |||
Operating Temperature(℃) | -40 | 25 | 85 | ||
Storage Temperature (℃) | -55 | 25 | 100 |
Measurement Range (°) | Condition | ±180 |
Measurement axis | X | |
Accuracy (°) | Room temperature | 0.01 |
Resolution (°) | Completely still | 0.001 |
Zero bias (°/℃) | -40 ~85℃ | ±0.005 |
Start- up time | <3s | |
Output frequency (Hz) | 100 | |
Full-scale output currentrange(V) | 0~5V、0~10V(optional) | |
Mean time between failures MTBF | ≥90000 h/times | |
Electromagnetic compatibility | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Weight (g) | 2000g ,0.5ms , 3 times/axis |
