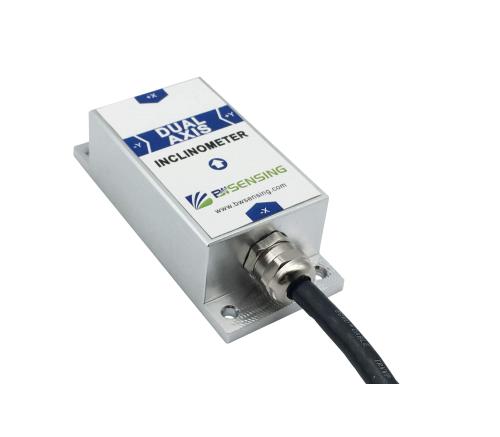

BWSENSING Voltage Output Double-axis Inclinometer BWM420
BWSENSING Voltage Output Double-axis Inclinometer BWM420
BWM420 BWSENSING Voltage Output Double-axis Inclinometer BWM420 Product Introduction:

●Dual axis inclination measurement
●Resolution:0.001°
●Power supply:12-36V
●Dimension:L90*W40.5*H26(mm)
●Highest accuracy:0.01°
●Range:±90°
●Output:0-5V /0-10V optional
●IP67 Protection level

Shared:

Technical Specifications

Parameter

Condition


Minimum


Typical


Maximum

Power voltage(V)



12




36

Working Current (mA)

No load


20


30


40

Output load (kΩ)

Resistive


10





Output load (mF)

Capacitive






20

Operating Temperature (℃)



-40


25


85

Storage Temperature (℃)



-55


25


100

Measurement Range (°)

Condition


±90

Measurement axis



X-Y

Accuracy (°)

Room temperature


0.01

Resolution (°)

Completely still


0.001

Zero bias (°/℃)

-40~85℃


±0.005

Output frequency (Hz)

100

Full-scale output voltage range (V)

0~5V、0~10V optional

Mean time between failures MTBF

≥90000 h

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g,0.5ms,3 times/axis

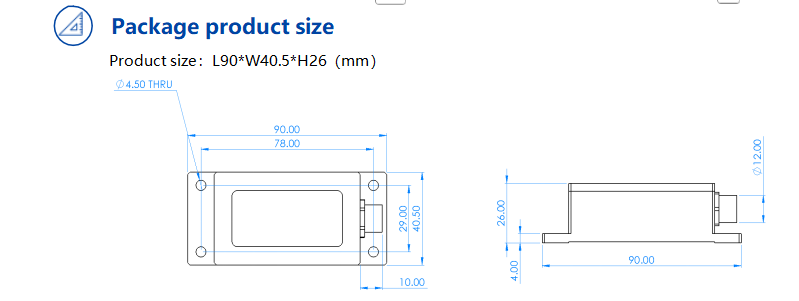

Product Size
