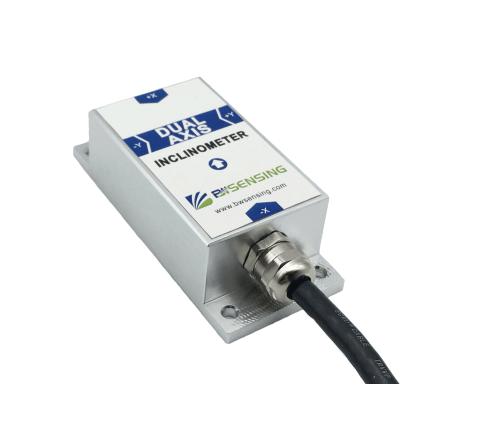

●Dual axis inclination measurement
●Resolution:0.001°
●Power supply:9-35V

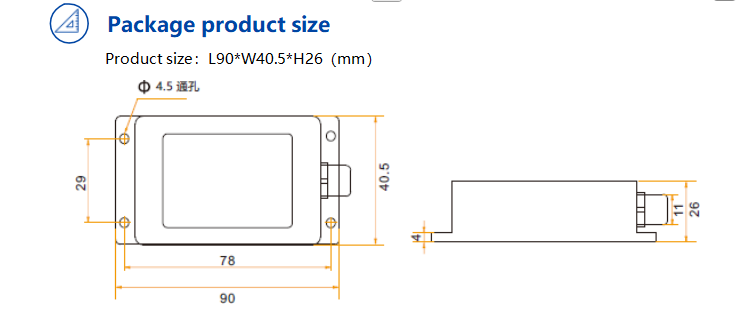

●Dimension:L90*W40.5*H26(mm)
●Highest accuracy:0.01°
●Range:±90°
●Output:RS232/RS485/TTL optional
●IP67 Protection level
Parameter | Condition | Minimum | Typical | Maximum | |||
Power voltage(V) | 9 | 12 | 35 | ||||
Working Current (mA) | No load | 20 | 30 | 40 | |||
Operating Temperature (℃) | -40 | 25 | 85 | ||||
Storage Temperature (℃) | -55 | 25 | 100 |
Measurement Range (°) | Condition | ±90 |
Measurement axis | Mutually perpendicular | X-Y |
Accuracy (°) | Room temperature | 0.01 |
Resolution (°) | Completely still | 0.001 |
Zero bias (°/℃) | -40~85℃ | ±0.005 |
Cross axis error(°) | -40~85℃ | 0.01 |
Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
Mean time between failures MTBF | ≥90000h | |
Electromagnetic compatibility | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g,0.5ms,3 times/axis |
