●Dual axis inclination measurement
●Resolution:0.001°
●Power supply:9-36V

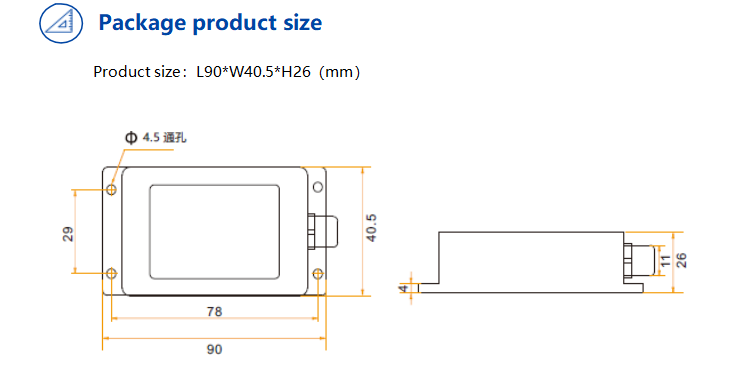

●Dimension:L90*W40.5*H26(mm)
●Highest accuracy:0.005°
●Range:±30°
●Output:RS485/TTL optional
●IP67 Protection level
Parameter | Condition | Minimum | Typical | Maximum | |||
Power voltage (V) | 9 | 12 | 36 | ||||
Working current(mA) | No load | 20 | 30 | 40 | |||
Operating Temperature (℃) | -40 | 25 | 85 | ||||
Storage Temperature (℃) | -55 | 25 | 100 |
Measurement Range (°) | Condition | ±30 | |
Measurement axis | X-Y | ||
Accuracy (°) | Room temperature | 0.005(Within±5°) | |
Resolution (°) | Completely still | 0.001 | |
Zero bias (°/℃) | -40~85℃ | ±0.001 | |
Start-up time | <3s | ||
Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | |
Mean time between failures MTBF | ≥90000 h | ||
Electromagnetic compatibility | According to GBT17626 | ||
Insulation resistance | ≥100 MΩ | ||
Impact resistance | 2000g,0.5ms,3 times/axis |
