BWSENSING Super High-accuracy Digital Output Dual-axis Inclinometer BWS2000
BWSENSING Super High-accuracy Digital Output Dual-axis Inclinometer BWS2000

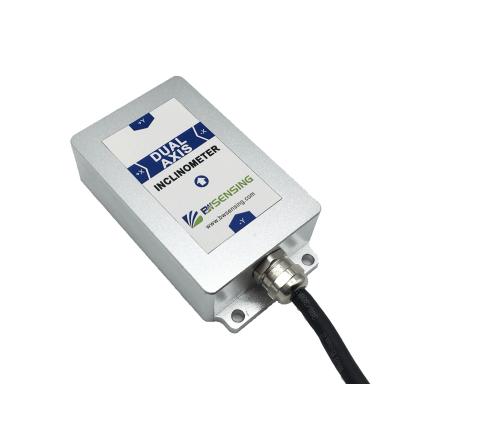

BWS2000 BWSENSING Super High-accuracy Digital Output Dual-axis Inclinometer BWS2000 Product Introduction:

BWS2000 is a super high-accuracy dual-axis inclinometer. The resolution, accuracy, and temperature drift are 0.0005°, 0.001°and 0.0007°/℃ respectively. RS232, RS485 and TTL all can be its output interface.

Shared:

Technical Specifications

Accuracy: 0.001°

Resolution: 0.0005°

Measuring axis: X-Y

Measuring range: ±30°

Power supply DC: 9-35V

Output: RS232、RS485、TTL optional

Wide operating temperature: -40℃~+85℃

Store temperature: -55℃~+100℃

Zero temperature drift: ±0.0007°/℃


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.001 ° 0.0005°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±30°±0.0007°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
