Voltage (V)

9-36

Current (mA)

No load

20-40

Operating temperature(℃)

-40~+85

Storage temperature(℃)

-55~+100

Measurement axis

Mutually

perpendicular

X-Y

X-Y

X-Y

Accuracy (°)

Room temperature

0.001

0.003

0.005

Cross-axis error (°)

-40~85℃

0.001

0.003

0.005

Resolution (°)

be completely still

0.0005

Zero temperature drift (°/°C)

-40~85℃

±0.0007

Power-on start-up time

＜3s

Output frequency (Hz)

5-100Hz adjustable

Up to 100

Baud rate

tunable

2400~115200

Mean time between failures

MTBF

≥90000 h

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g，0.5ms，3 times/axis

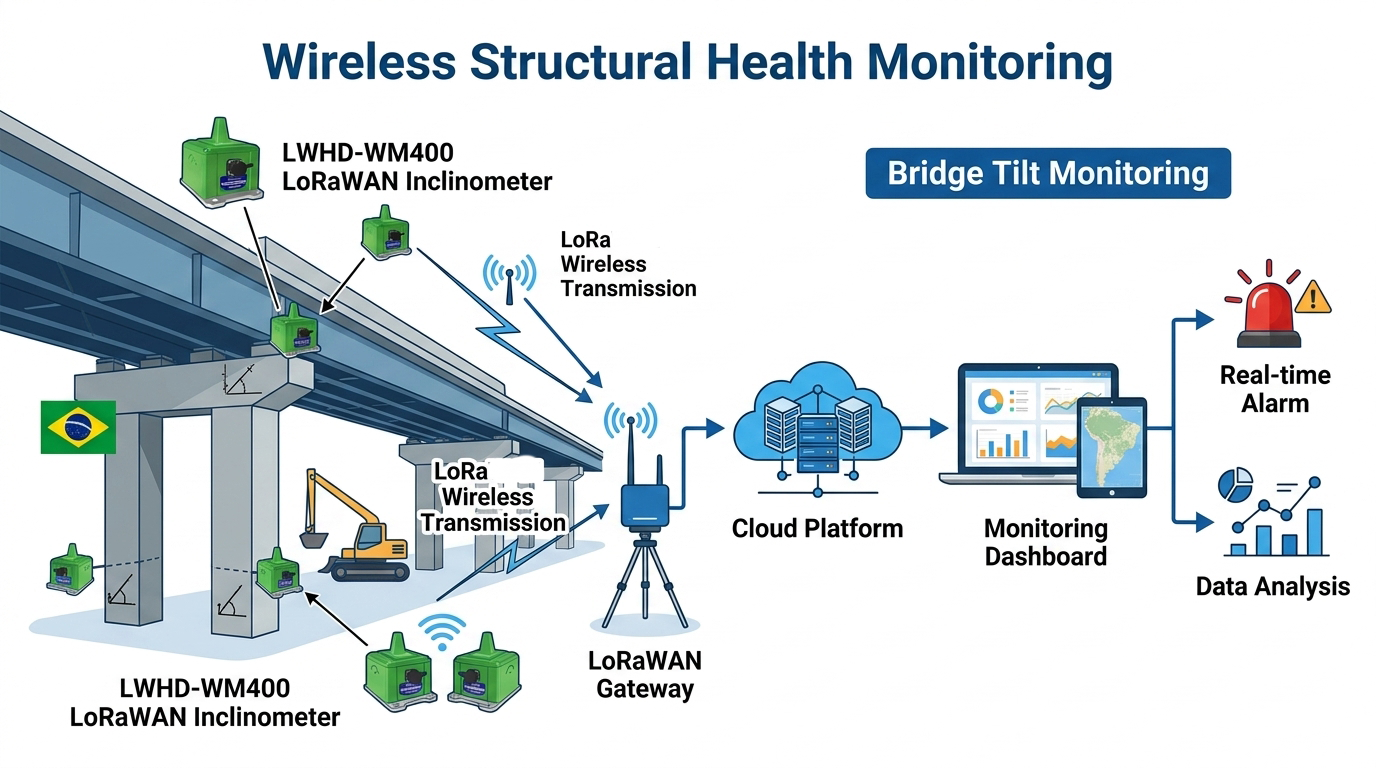

● Bridge deflection monitoring

● Building health monitoring

● Precision platform automatic leveling

●Military equipment automation

● Tunnel and dam monitoring

● Tower tilt monitoring

● Surveying and Mapping Instruments

● Wind turbine tower monitoring
