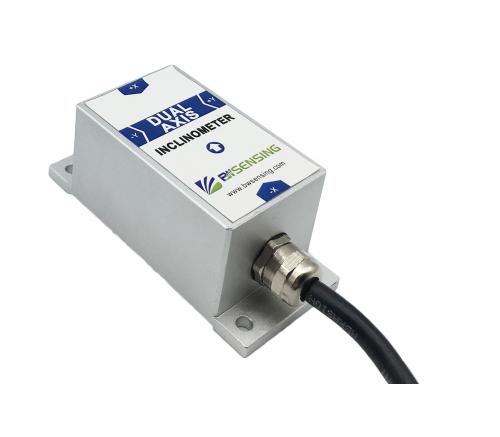

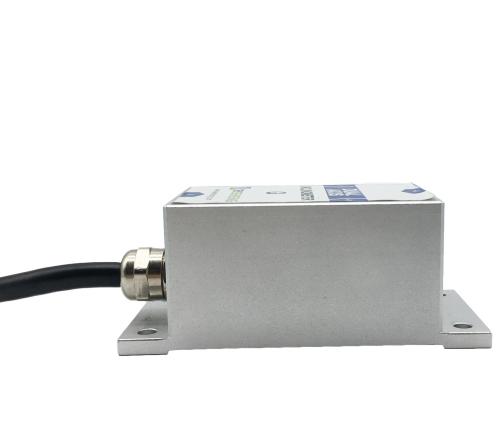

BWSENSING High Accuracy CAN Bus Dual-axis Inclinometer BWS5500
BWSENSING High Accuracy CAN Bus Dual-axis Inclinometer BWS5500
BWSENSING High Accuracy CAN Bus Dual-axis Inclinometer BWS5500
BWSENSING High Accuracy CAN Bus Dual-axis Inclinometer BWS5500
BWS5500 BWSENSING High Accuracy CAN Bus Dual-axis Inclinometer BWS5500 Product Introduction:

● Dual axis tilt measurement
● High accuracy:0.001°
● Output:CAN
● Baud rate 2400~115200adjustable
● IP67 Protection level
● Wide voltage input 9-36V DC
● Output frequency 5~100Hz adjustable
● Temperature drift: 0.0003°/℃

Shared:

Technical Specifications

Performance Index

Measurement Range (°)

Condition


±5


±15

Measurement axis

Mutually perpendicular


X-Y


X-Y

Accuracy (°)

Room temperature


0.001


0.003

Cross axis error (°)

-40~85℃


0.001


0.003

Resolution (°)

Completely still


0.0001

Zero bias (°/℃)

-40~85℃


±0.0003

Start-up time



3s

Output frequency (Hz)

5-100Hz adjustable


Up to 100

Baud rate

Adjustable


2400~115200

Mean time between failures MTBF

≥90000 h/time

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100MΩ

Impact resistance

2000g,0.5ms,3 times/axis

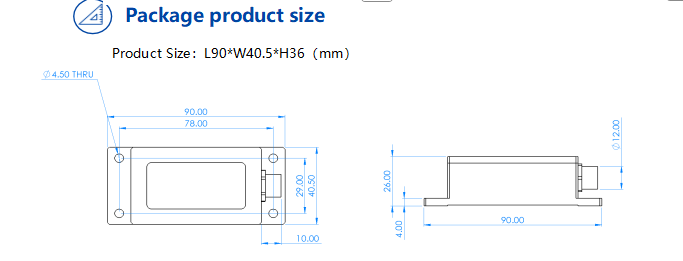

Product Size
