●Nine-axis AHRS sensor intelligent fusion algorithm
●Maximum heading accuracy ≤0.1 °/circle, pitch and roll accuracy ≤0.05 °
●AEC-Q100 certification and manufacturing process
●Accuracy is CNAS traceable
●Wide temperature range:-40℃~+85℃

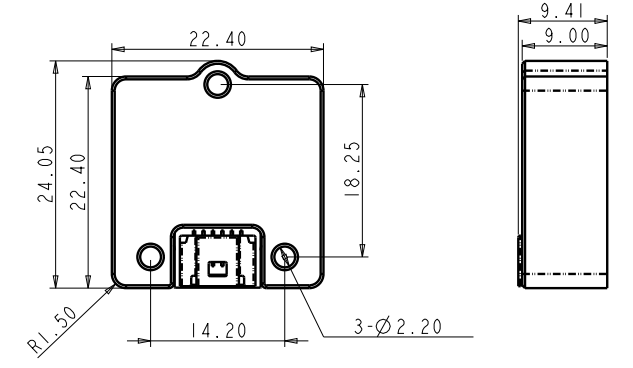

●Volume:L24.05*W22.4*H9.41 (mm)
●ISO26262 automotive-grade functional safety certification
●1000Hz raw data output frequency
Shared：
Azimuth Angle
| Measuring range | 0~360° | |
Accuracy | ≤ 1° (RMS) after spatial calibration | ||
Resolution | 0.1° | ||
Repeatability | 0.5° (RMS) | ||
Pitch angle
| Measuring range | ±90° | |
Accuracy | ≤0.2° (RMS) | ||
Resolution | 0.05° (RMS) | ||
Repeatability | 0.05° (RMS) | ||
Roll angle | Measuring range | ±180° | |
Accuracy | ≤0.2° (RMS) | ||
Resolution | 0.05° (RMS) | ||
Repeatability | 0.05° (RMS) | ||
Range | Accelerometer range | ±4g | |
Gyroscope range | ±500°/s | ||
Environments | Baud rate | 9600~460800 (default 9600) | |
User calibration procedure | Calibration | 16-point calibration |
l Humanoid robots
l Rotary-wing drones
l AGV
l Medical assistive devices
l Motion capture
l Buoy attitude
l Observation equipment
l Night Vision
-
