Ultra-low Cost Inertial Measurement Unit IMU50
Ultra-low Cost Inertial Measurement Unit IMU50
IMU50 Ultra-low Cost Inertial Measurement Unit IMU50 Product Introduction:

●Dynamic compensation, quadrature compensation
●Gyroscope drift:150°/h
●RS232 /485/TTL Output optional
●Wide temperature range:-40 ℃~+85℃, Temperature compensation
●Small size:L55×W37×H24mm

Shared:

Technical Specifications

Power voltage

5V DC

Working current

30mA (40mA max)

Operating temperature

-40~85℃

Storage temperature

-55~100℃





Gyro

Resolution


0.01°/sec

Range


±400°/sec

Bias stability at room

temperature


2°/h( 100s,1σ)

150°/h(10s,1σ)

Angle random walk

coefficient


0.1 °/√h

Bias repeatability


50 °/h( 1σ)

Scale factor non-linearity


≤100ppm( 1σ)

Scale factor repeatability


≤100ppm( 1σ)

Bandwidth


100Hz





Accelerometer

Range: X, Y, Z


±2g

Resolution


0.01mg

Add zero offset


0.15mg

Bias stability


0.001mg( 25℃, 100s, 1σ)

0.01mg( 25℃, 10s,1σ)

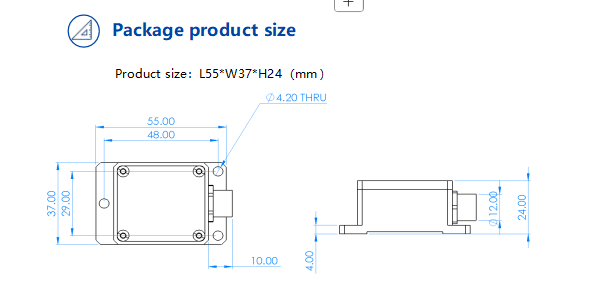

Product Size
