Electronic compass
BWSENSING Two dimensional electronic compass LEC210
BWSENSING Two dimensional electronic compass LEC210
LEC210 BWSENSING Two dimensional electronic compass LEC210 Product Introduction:

LEC210 with high reliability and strong anti-interference ability of the industrial grade single-chip and high precision magnetic sensor and driver chip, integrated magnetic interference and soft magnetic interference compensation technology.

Shared:

Technical Specifications

Heading Accuracy0.3° (RMSStatic,Compass operating mode )

Pitch AccuracyRMS

Roll AccuracyRMS

Voltage5V DC

Output ModeRS232/RS485/TTL Optional, Modbus Optional

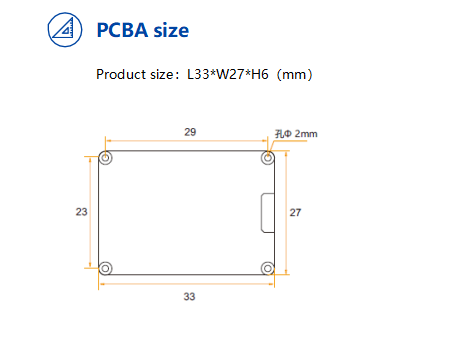

Dimension:  33×27×5mm

Protection Level: IP67


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
2°(pitch)  2°(roll)N/A


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
N/A-40℃~+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥100000 hoursIP67
