●Accuracy:2°(RMS)
●-40℃~+85℃ wide temperature work
●Small size:L55 x W37 x H24 (mm)
●Power supply:5-12V
●Resolution:0.1°
●Pitch/Roll accuracy:0.2°
●With hard and soft magnetic interface compensation
●Standard RS232, RS485 and TTL optional

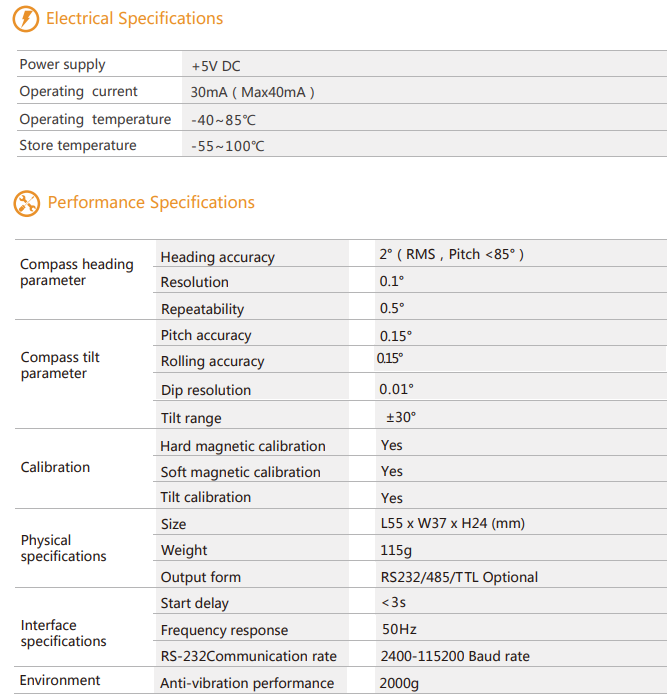

Performance index
Compass heading parameter | Heading accuracy | 2°(RMS) | |
Resolution | 0.1° | ||
Repeatability | 0.5° | ||
Compass inclination parameter | Pitch accuracy | 0.15º | |
Roll accuracy | 0.15º | ||
Resolution | 0.01° | ||
Inclination | ±30° | ||
Calibration | Hard magnetic calibration | Yes | |
Soft magnetic calibration | Yes | ||

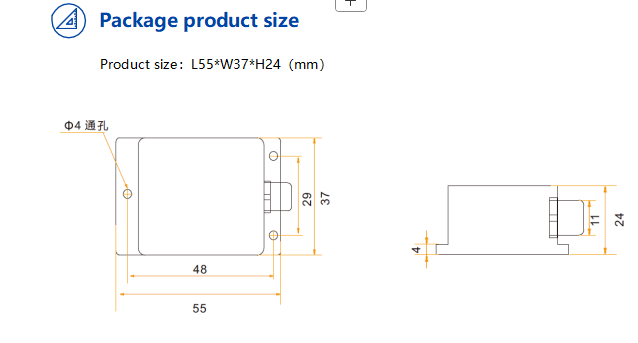

Mechanical parameter | Dimension | L55 x W37 x H24 (mm) | |
Weight | 115g | ||
Output mode | RS232/485/TTL interface | ||
Interface characteristics | Start-up delay | <3s | |
Maximum output frequency | 50Hz | ||
RS232 communication rate | 2400 to 115200 baud rate | ||
Environment | Anti-vibration performance | 2000g |
