● High accuracy in high pressure environments
● Dynamic barometric measurement
● Mechanical pneumatic calibration system
● Working temperature：-10℃~+60℃
● Excellent over pressure performance
● High long-term stability
Shared：
Power Supply | 9~36V DC |
Working Current | 40mA （DC 12V） |
Working Temperature | -20~+70℃ |
Storage Temperature | -30~+80℃ |
Connector | J30J-9ZK |
IP Grade | IP66 |
Shell Material
| aviation aluminum |
Installation | 9 group 1.1mm Metal airtight tube(RF1.25mm) |
Pressure Index | Range | Differential pressure 120kPa |
Accuracy | 0.05%FS 0.05%FS 0.1%FS | |
Zero Point Offset
| ＜ 0.05 %FS | |
Temperature zero return difference（42h） | 0.02uV/V | |
Overvoltage performance | 2MPa | |

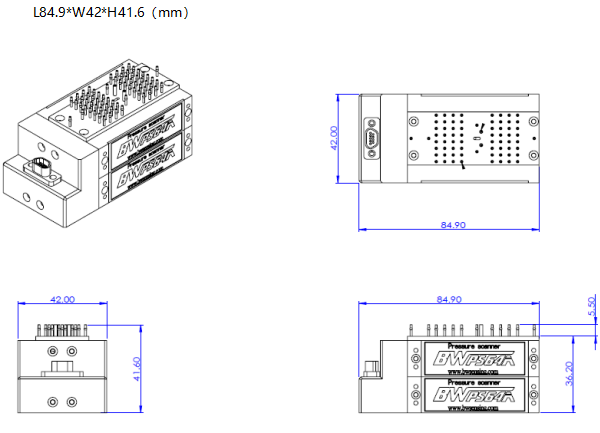

Physical Characteristics | Size | L84.5*W42*H41.6（mm） |
Net Weight | 250g | |
Interface | Output Frequency | 5~200Hz |
Baud rate of serial communication | 2000000 | |
Digital output format | ASCII & HEX | |
Pressure Chip Test Stability | Load Static Voltage Characteristic | ≤ 0.03 ±%FS/10MPa |
Long-term Stability （1000h，135℃） | ±5uV/V | |
Nonlinearity
| ≤ 0.3±%FS | |
MTBF | ≥3000 hs/time | |
Working Temperature | -20℃～+70℃ | |
-
