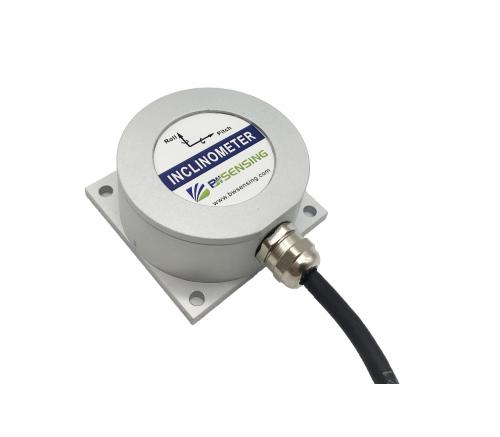

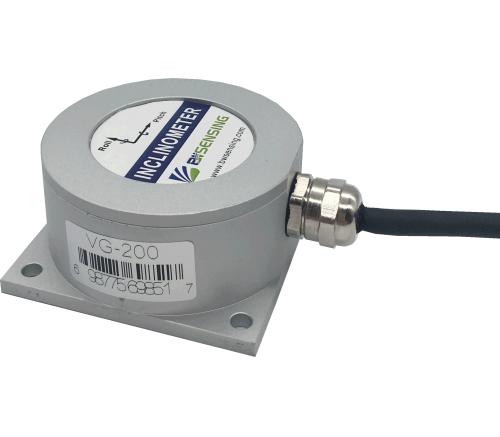

BW-VG200 BWSENSING Low-cost Digital Dynamic Inclinometer BW-VG200 Product Introduction:

● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● RS232/485/TTL interface output optional
● Wide temperature range:-40℃~+85℃
● Hig

Shared:

Technical Specifications

Performance indicators




Attitude Parameter

Dynamic accuracy


0.5°

Static accuracy


0.01°

Resolution


0.01°

Tilt margin


Pitch ± 90º, Roll ± 180º



Physical properties

Dimension


L60×W59×H29(mm)

Weight (with wire)


280g

Weight (With packaging)


360g





Interface characteristics

Communication mode


RS232/RS485/TLL

Start delay


<50ms

Maximum sampling rate frequency


500Hz

Serial communication rate


2400 to 115200 baud rate

Digital output format


Binary High Performance Protocol

Trouble-free work on

average

≥ 90000 hours

EMC

According to GBT17626

Insulation Resistance

≥ 100 MΩ

Surge suppression

2000g, 0.5ms, 3 Times/axis

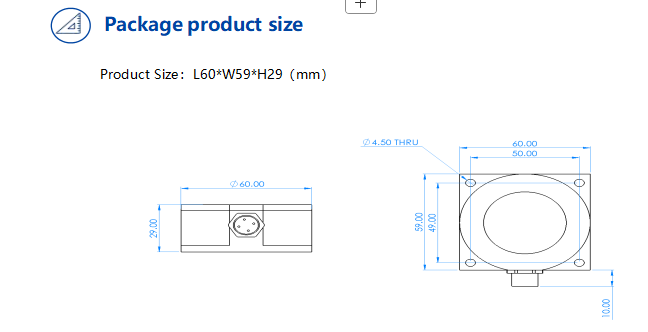

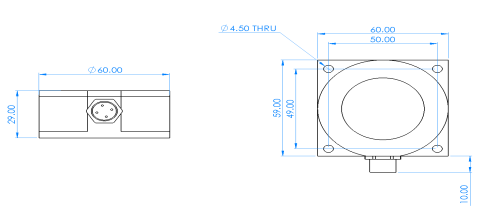

Product Size
