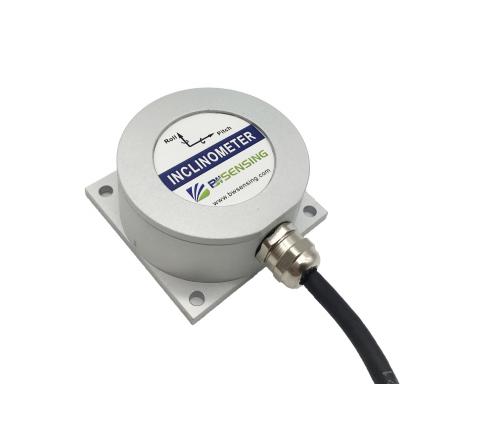

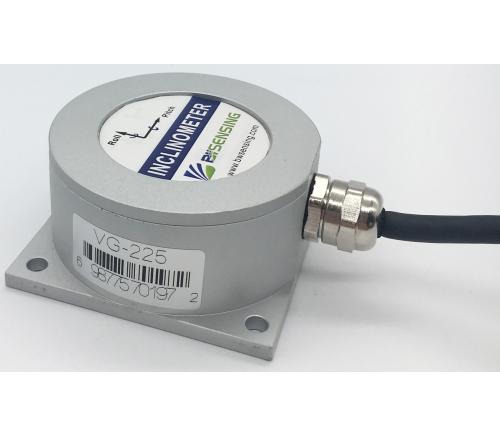

BWSENSING Low-cost CAN Bus Dynamic Inclinometer BW-VG225
BWSENSING Low-cost CAN Bus Dynamic Inclinometer BW-VG225
BWSENSING Low-cost CAN Bus Dynamic Inclinometer BW-VG225
BWSENSING Low-cost CAN Bus Dynamic Inclinometer BW-VG225
BW-VG225 BWSENSING Low-cost CAN Bus Dynamic Inclinometer BW-VG225 Product Introduction:

● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● CAN bus output
● Wide temperature range:-40℃~+85℃
● High-performance Kalman filt

Shared:

Technical Specifications

Performance Index

Attitude Parameter

Dynamic Accuracy

0.5°

Static Accuracy

0.01°

Resolution

0.01°

Tilt range

Pitch ± 90º, Roll ± 180º



Physical properties

Dimension

L60×W59×H29(mm)

Weight (with cable)

280g

Weight (with package)

360g



Interface characteristics

Start-up delay

<50ms

Maximum Output Frequency

500Hz

Serial Communication Rate

2400 to 115200 baud rate

Digital Output Format

Binary High Performance Protocol

Trouble-free work on average

≥90000 hours

EMC

According to GBT17626

Insulation Resistance

≥100 MΩ

Surge suppression

2000g, 0.5ms, 3 Time/shaft

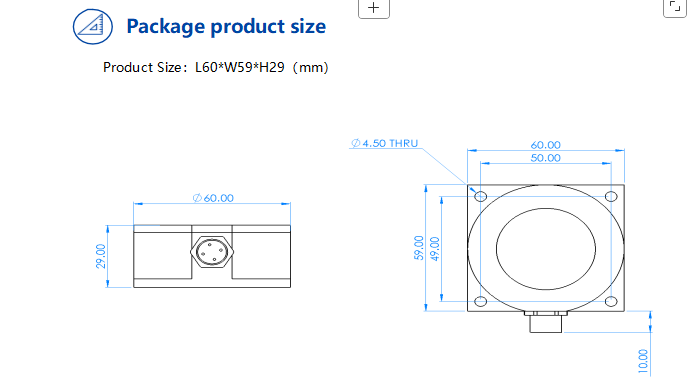

Product Size
