● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● 0-5V/0-10V output for optional
● Wide temperature range:-40℃~+85℃
● High-perform
Electrical indicators
Parameters | Condition | Minimum | Typical value | Maximum | |||
Voltage (V) | 12 | 36 | |||||
Working current(mA) | No load | 20 | 50 | 60 | |||
Output load (kΩ) | Resistive | 10 | |||||
Output load (nF) | Capacitive | 20 | |||||
Operating temperature | -40 | 85 | |||||
Storage temperature(℃) | -55 | 100 |
Attitude Parameter | Dynamic Accuracy | 0.3° | |
Static Accuracy | 0.01° | ||
Resolution | 0.01° | ||
Tilt range | Pitch ± 90º, Roll ± 180º | ||

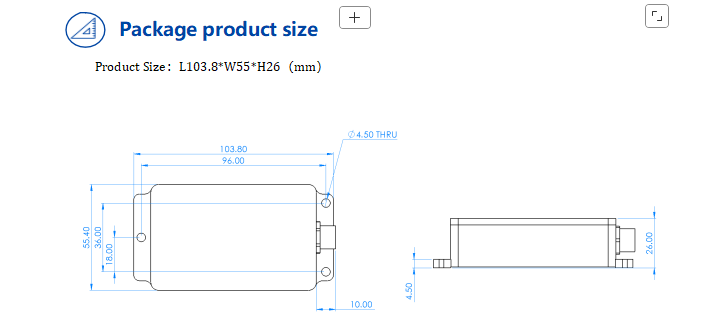

Physical properties | Dimension | L103.8×W55.4×H26(mm) | |
Weight (with cable) | 320g | ||
Weight (with package) | 400g | ||
Interface characteristics | Voltage Output Range (v) | (0-5 optional) (0-10 optional) | |
Startup Delay | <50ms | ||
Serial Communication Rate | 2400 to 115200 baud rate | ||
Digital Output Format | Binary High Performance Protocol | ||
Mean Time Between Failure (MTBF) | ≥90,000 hours | ||
Electromagnetic compatibility | According to GBT17626 | ||
Insulation resistance | ≥100MΩ | ||
Shock resistance | 2000g, 0.5ms, 3 times/axis |
