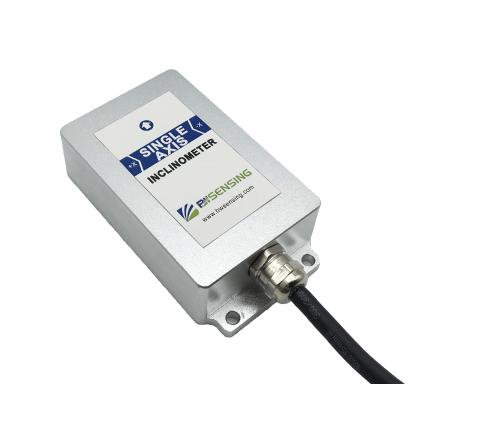

● Range: ±30°
● Wide voltage input:12-36V
● Single axis inclination measurement
● Output: 0-20mA/4-20mA/0-24mA optional
● Highest accuracy: 0.003°
● Output frequency 100Hz
● High resolution: 0.0007°
● Wide temperature work:-40℃~+85℃

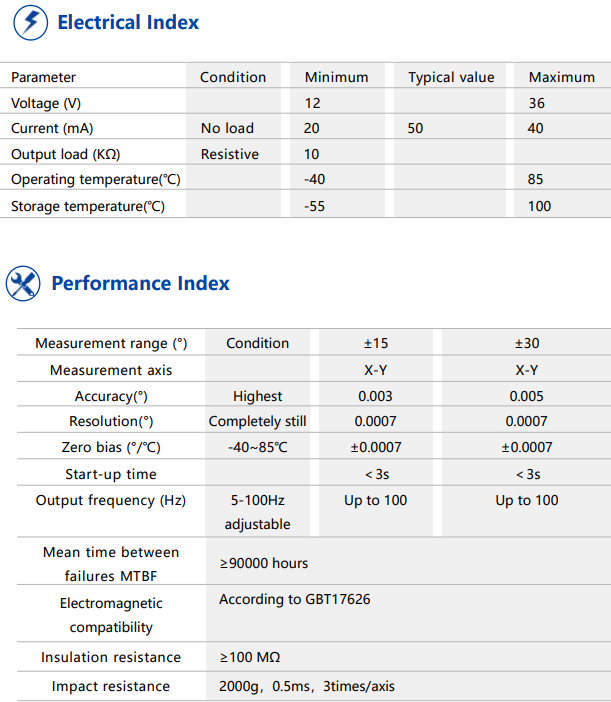

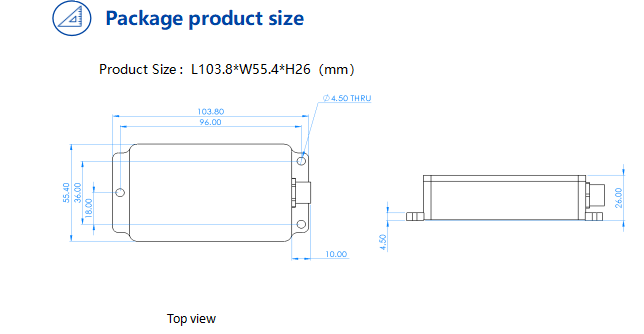

Electrical Index
Parameter | Condition | Minimum | Typical value | Maximum | |||
Voltage (V) | 12 | 36 | |||||
Current (mA) | No load | 20 | 50 | 40 | |||
Output load (KΩ) | Resistive | 10 | |||||
Operating temperature(℃) | -40 | 85 | |||||
Storage temperature(℃) | -55 | 100 |
Performance Index
Measurement range (°)
| Condition | ±15 | ±30 | ||
Measurement axis | X | X | |||
Accuracy(°) | Highest | 0.003 | 0.005 | ||
Resolution(°) | Completely still | 0.0007 | 0.0007 | ||
Zero bias (°/℃) | -40~85℃ | ±0.0007 | ±0.0007 | ||
Start-up time | <3s | <3s | |||
Output frequency (Hz) | 100
| ||||
Mean time between failures MTBF | ≥90000 hours | ||||
Electromagnetic compatibility | According to GBT17626 | ||||
Insulation resistance | ≥100 MΩ | ||||
Impact resistance | 2000g,0.5ms,3times/axis |
