Inclinometer

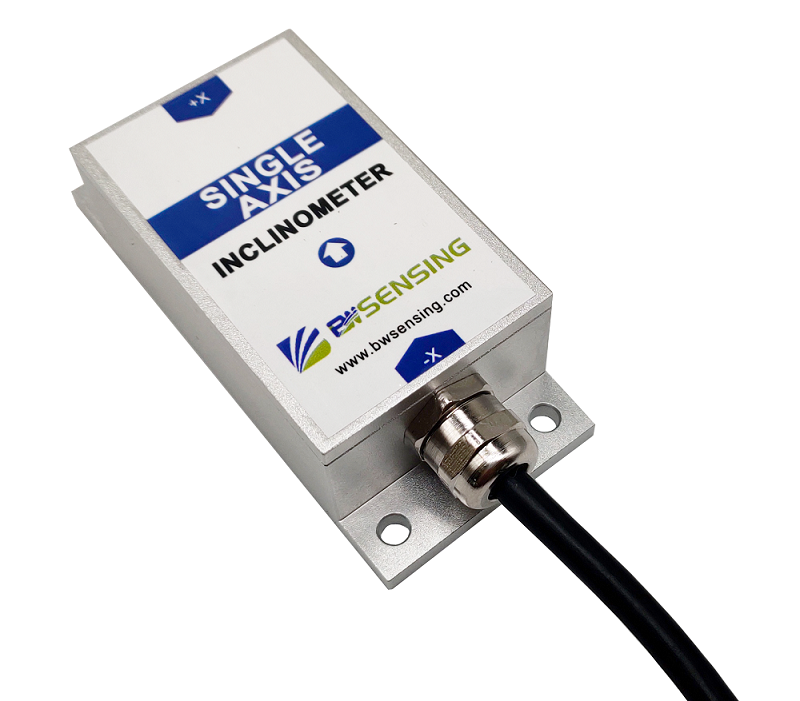

BWM417 BWSENSING Modbus Single-axis Inclinometer BWM417 Product Introduction:

Designed by BEWIS Sensing Technology LLC, BWM417 is a low cost and small Modbus protocol output single-axis inclinometer.

Shared:

Technical Specifications

Accuracy: 0.01°

Resolution: 0.001°

Measuring axis: X

Measuring range: ±180°

Power supply DC: 9-35V

Output: RS232、RS485、TTL optional

Wide operating temperature: -40℃~+85℃

Store temperature: -55℃~+100℃

Zero temperature drift: ±0.005°/℃


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.01°0.001°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±1800°±0.005°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
