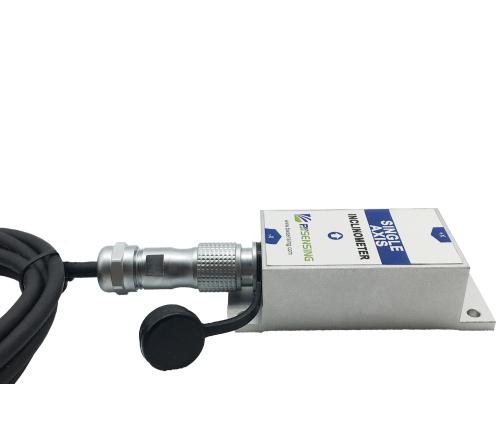

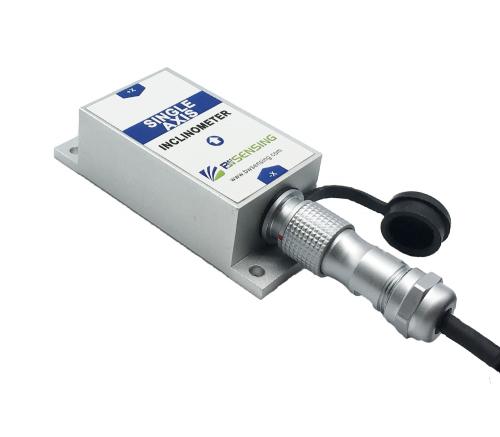

BWSENSING Modbus Single-axis Inclinometer BWM417H
BWSENSING Modbus Single-axis Inclinometer BWM417H
BWSENSING Modbus Single-axis Inclinometer BWM417H
BWSENSING Modbus Single-axis Inclinometer BWM417H
BWM417H BWSENSING Modbus Single-axis Inclinometer BWM417H Product Introduction:

● Single axis inclination measurement
● Resolution:0.001°
● Power supply:9-35V
● Dimension:L90*W40.5*H26(mm)
● Highest accuracy:0.01°
● Range:±180°
● Output:RS232/RS485/TTL optional
● IP67 Protection level

Shared:

Technical Specifications

Electrical Index

Parameter

Condition


Minimum


Typical


Maximum

Power voltage(V)



9


12


35

Working Current (mA)

No load


20


30


40

Operating Temperature (℃)



-40


25


85

Storage Temperature (℃)



-55


25


100

Performance Index

Measurement Range (°)

Condition


±180

Measurement axis



X

Accuracy (°)

Room temperature


0.01

Resolution (°)

Completely still


0.001

Zero bias (°/℃)

-40~85℃


±0.005

Cross axis error(°)

-40~85℃


0.01

Output frequency (Hz)

5-100Hz adjustable


Up to 100

Mean time between failures MTBF

≥90000h

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g,0.5ms,3 times/axis


Product Size
