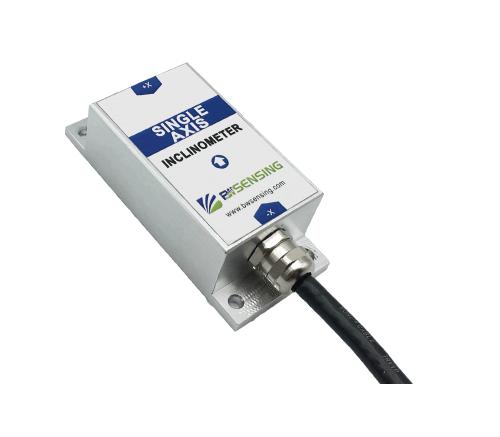

● Single axis inclination measurement
● Resolution: 0.001°
● Power supply: 12-36V

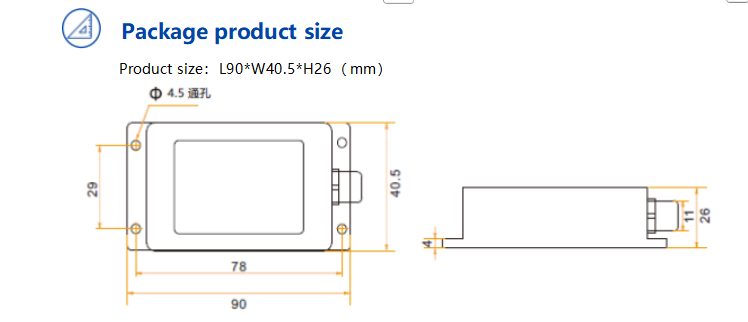

● Dimension: L90*W40.5*H26(mm)
● Highest accuracy :0.01°
● Range :±180°
● Output :4-20mA/0-20mA/0-24mA optional
● IP67 Protection level
Parameter | Condition | Minimum | Typical | Maximum | ||
Power voltage(V) | 12 | 36 | ||||
Working Current (mA) | No load | 20 | 30 | 40 | ||
Output load (Ω) | Max | 500 | ||||
Operating Temperature (℃) | -40 | 25 | 85 | |||
Storage Temperature (℃) | -55 | 25 | 100 |
Measurement Range (°) | Condition | ±180 |
Measurement axis | X | |
Accuracy (°) | Room temperature | 0.01 |
Resolution (°) | Completely still | 0.001 |
Zero bias (°/℃) | -40 ~85℃ | ±0.005 |
Cross axis error ( °) | -40 ~85℃ | 0.01 |
Output frequency (Hz) | 100 | |
Fullscale output current range (V) | 4-20( 0-20optional) (0-24 optional) | |
Mean time between failures MTBF | ≥90000h | |
Electromagnetic compatibility | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g ,0.5ms , 3 times/axis |
