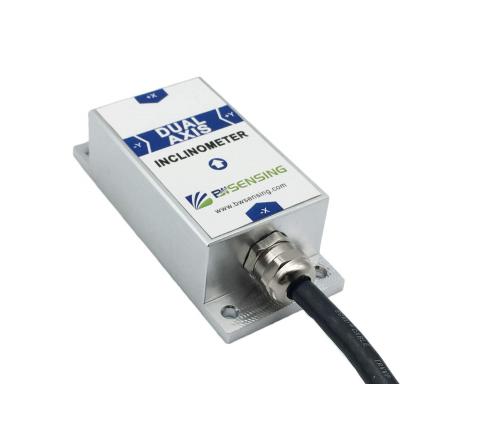

BWSENSING Dual-axis Inclinometer BWN826
BWSENSING Dual-axis Inclinometer BWN826
BWN826 BWSENSING Dual-axis Inclinometer BWN826 Product Introduction：

BWN826 is a voltage output type dual axis tilt sensor. Choose one of RS232，RS485 and TTL as the output form. The product has small volume and good shock resistance.

Shared：

Technical Specifications Product Size   Video Tutorials Relevant Solutions

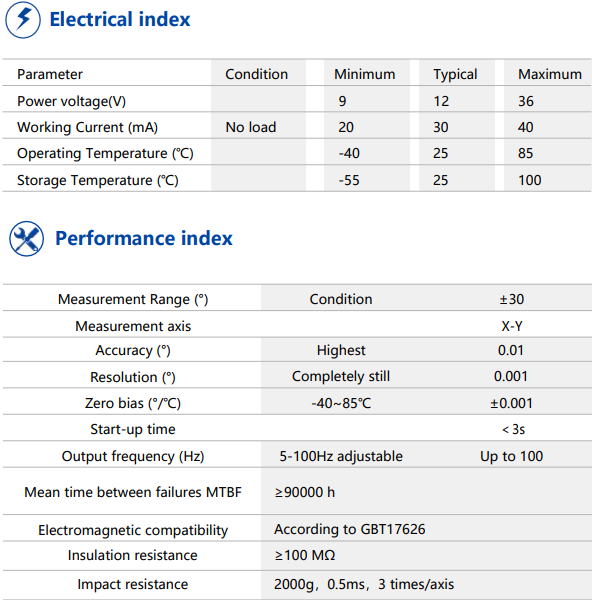

Technical Specifications
1522039676218109.png Accuracy1522110325448404.png Resolution
0.01°0.001°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±30°±0.005°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67

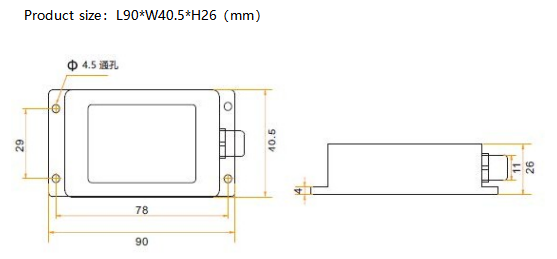

Product Size
1522039676218109.png Accuracy1522110325448404.png Resolution
0.01°0.001°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±30°±0.005°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
