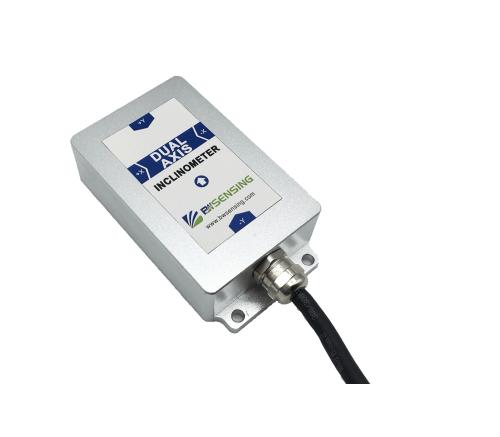

BWSENSIGN Super High-accuracy Voltage Output Dual-axis Inclinometer BWS2200
BWSENSIGN Super High-accuracy Voltage Output Dual-axis Inclinometer BWS2200
BWS2200 BWSENSIGN Super High-accuracy Voltage Output Dual-axis Inclinometer BWS2200 Product Introduction:

●High accuracy: 0.001°
●Dual axis inclination measurement
●0-5V, 0-10V optional, Output RS232
●Baud rate 2400~115200 adjustable
●IP67 protection level
●Wide voltage input: 12-36V DC
●Output frequency 100Hz
●Accept OEM customization

Shared:

Technical Specifications

Electrical index

Parameter

Condition


range of values

Voltage (V)



12-36

Current (mA)

No load


20-60

Output load (kΩ)

Resistive


≥10

Output load (nF)

Capacitive


≤20

Operating temperature(℃)



-40~+85

Storage temperature(℃)



-55~+100

Performance index

Measurement Range (°)

Condition


±5


±15


±30



Measurement axis

Mutually perpendicular


X-Y


X-Y


X-Y

Accuracy (°)

Room temperature


0.001


0.003


0.005

Cross-axis error (°)

-40~85℃


0.001


0.003


0.005

Resolution (°)

be completely still


0.0005

Zero point temperature drift (°/°C)

-40~85℃


±0.0007

Power-on start-up time



<3s

Output frequency (Hz)

100

baud

tunable


2400~115200

Mean time between failures MTBF

≥90000 h

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g,0.5ms,3 times/axis

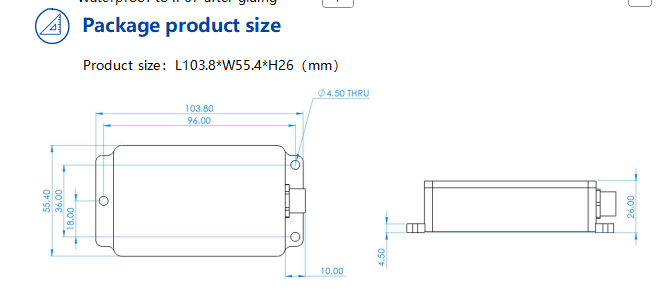

Product Size
