IMU127

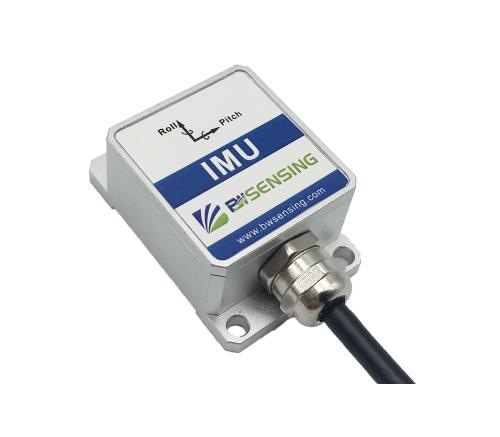

Low-cost Modbus Inertial Measurement Unit IMU127
Product Introduction：
●RS232 /485/TTL/Modbus Output optional
●Wide temperature range：-40℃~+85℃，Temperature compensation
●Small size：L55×W37×H24mm
●Dynamic compensation,quadrature compensation
●Gyro drift 100°/h
●Operating temperature-40~85℃
●Storage temperature-
Shared：
Technical Specifications
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±500°/sec | |
| Bias stability at room temperature | ＜2°/h（100s,1σ） ＜100°/h（10s,1σ） | |
| Angle random walk coefficient | ＜0.1°/√h | |
| Bias repeatability | ＜50°/h（1σ） | |
| Scale factor non-linearity | ≤100ppm（1σ） | |
| Scale factor repeatability | ≤100ppm（1σ） | |
| Bandwidth | 100Hz | |
| Accelerometer | Range:X,Y,Z | ±2g(optional±16g) |
| Resolution | 0.01mg | |
| Accelerometer zero offset | 0.15mg | |
| Zero bias stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） |
Mechanical Index
| Connector | Metal joint（Cable 1.5m) |
| Protection level | IP67 |
| Shell material | Magnesium aluminum alloy anodizing |
| Installation | Four M4 screws |
Product Size
-
