Ultra-small Three-axis Fiber Optic Gyroscope Inertial Measurement Unit
Ultra-small Three-axis Fiber Optic Gyroscope Inertial Measurement Unit

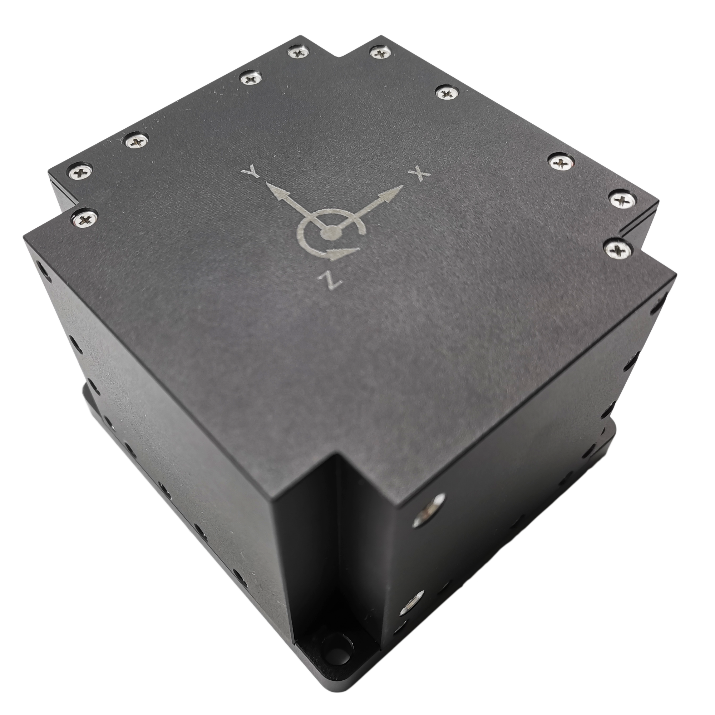

IMU810 Ultra-small Three-axis Fiber Optic Gyroscope Inertial Measurement Unit Product Introduction:

● Gyro bias stability:≤0.08°/h
● Measuring range:±300°/s
● Acceleration range:±30g
● Wide temperature range:-40℃~+75 ℃
● Power Supply:12~24V
● Small Dimension:L97.3*W90*H70mm

Shared:

Technical Specifications










Fiber optic gyroscope

Bias stability(10s,1σ)(°/h)


≤0.08°/h


Bias repeatability (1σ)(°/h)


≤0.08°/h


Bias stability at full

100s,1σ,-40~+60℃)


≤0.09°/h


Scale factor nonlinearity (1σ)


≤120ppm


Scale factor repeatability


≤120ppm


Measuring range


±300°/s


Random walk coefficient


≤0.08° /h1 /2


bandwidth


≥400Hz









Accelerometer

Bias stability at room (10s,1σ)


≤0.6mg


Bias repeatability at room


≤0.6mg


Bias stability at full (10s,1σ)


≤1mg


Bias repeatability at full


≤1mg


Scale factor nonlinearity(1σ)


≤300ppm


Scale factor repeatability(1σ)


≤300ppm


Range


±30g





Other

indicators

Operating temperature


-40~+60℃


Storage Temperature


-45~+75℃


Dimension


97.3×90×70mm


Start time


≤1min


Weight


1000g

Power Input

+12~+24V

Power ripple(Vpp)

≤50mV

Maximum power consumption

9W

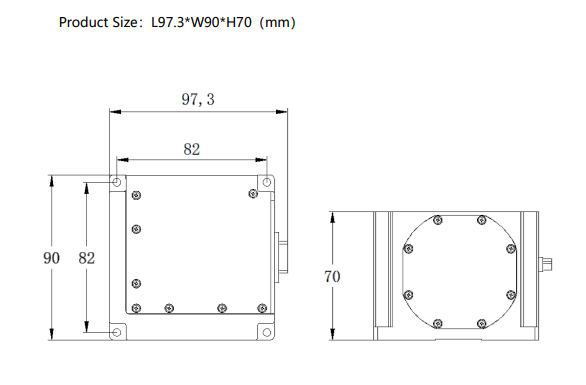

Product Size
