● Dual-axis inclination monitoring optional
● Alarm threshold can be set arbitrarily
● Single line output alarm
● Wide voltage input 9~36V
● Support external zero setting function
●High vibration resistance >2000g
● High resolution : 0.01°
● Wide-temperature operation -40°C to +85°C
● Accuracy: 0.1°
● IP67 Protection level
Shared：
Parameter | Condition | Min | Typ | Max | |||
Power voltage(V) | 9 | 12 | 36 | ||||
Working current(mA) | Horizontal no-load | 40（DC12V） | |||||
NC Maximum current(mA) | |||||||
Operating temperature(℃) | -40 | 85 | |||||
Storage temperature(℃) | -55 | 100 |

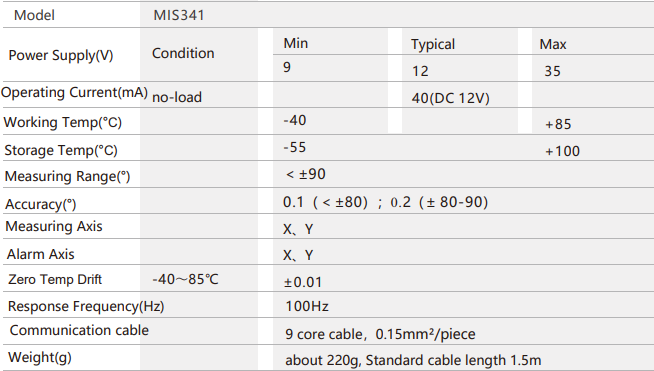

Parameter | Condition | MIS341 | |
Measurement Range（°） | ＜±90 | ||
Accuracy（°） | 0.1（＜±80）；0.2（± 80-90） | ||
Measurement axis | X、Y | ||
Alarm axis | X、Y | ||
Zero temperature drift（°/℃） | -40~85℃ | ±0.01 | |
Response frequency (Hz） | 100 | ||
Communication cable | 10-core cable, single 0.15mm² | ||
Weight (g) | About 220（cable 1.5m,without package） |

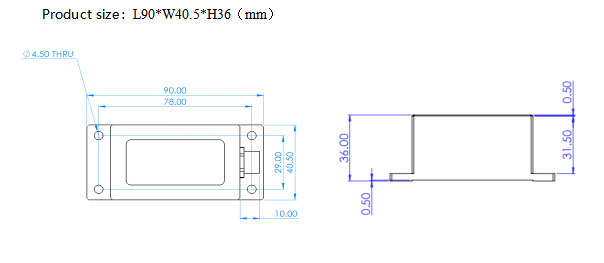

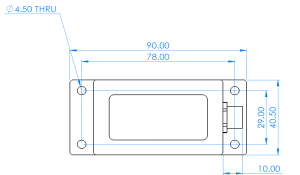

Product size：L90*W40.5*H36（mm）
-
