The multi-day 4th Long-span Bridge Safety, Longevity & Healthy Operation Academic Conference, together with the Innovation Achievement Seminar on Intelligent Bridge Construction Development, has successfully concluded. At the event, we held in-depth exchanges with industry experts and engineering partners. Centered on practical pain points including micro-deformation monitoring of bridge structures, long-term attitude perception and lightweight monitoring deployment, we explored implementation paths for inertial sensing technology in the health operation and maintenance of bridge infrastructure.

Core Monitoring Requirements

Hardware + IoT Integrated Monitoring Solution

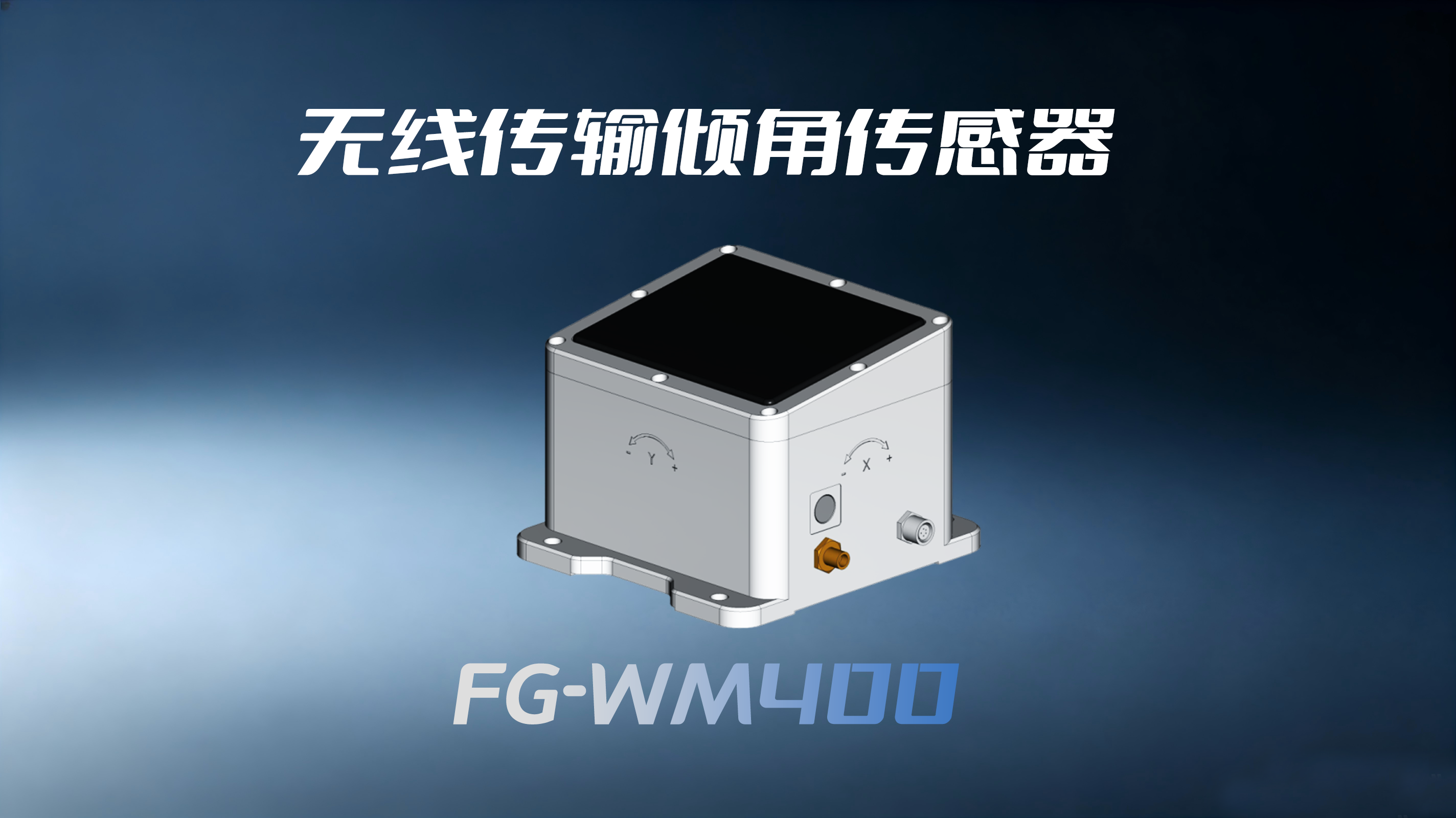

Wireless Tilt Sensor

• Resolution up to 0.001°, accuracy of 0.005°

• 10~20s data burst transmission, remote online upgrade

• Timed wake-up & motion wake-up modes

•

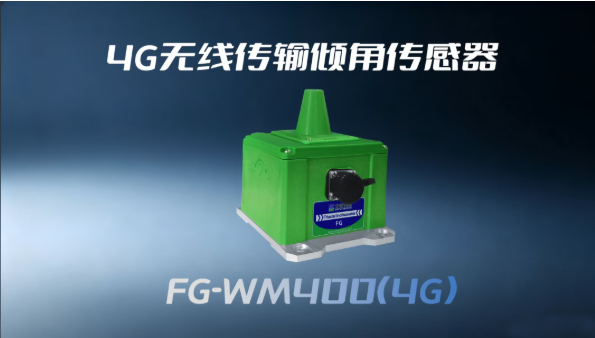

Wireless Tilt Sensor (Bridge-specific)

• Resolution 0.001°, accuracy 0.005°

• Outputs triaxial acceleration, triaxial tilt and vibration acceleration

• Remote online upgrade

•

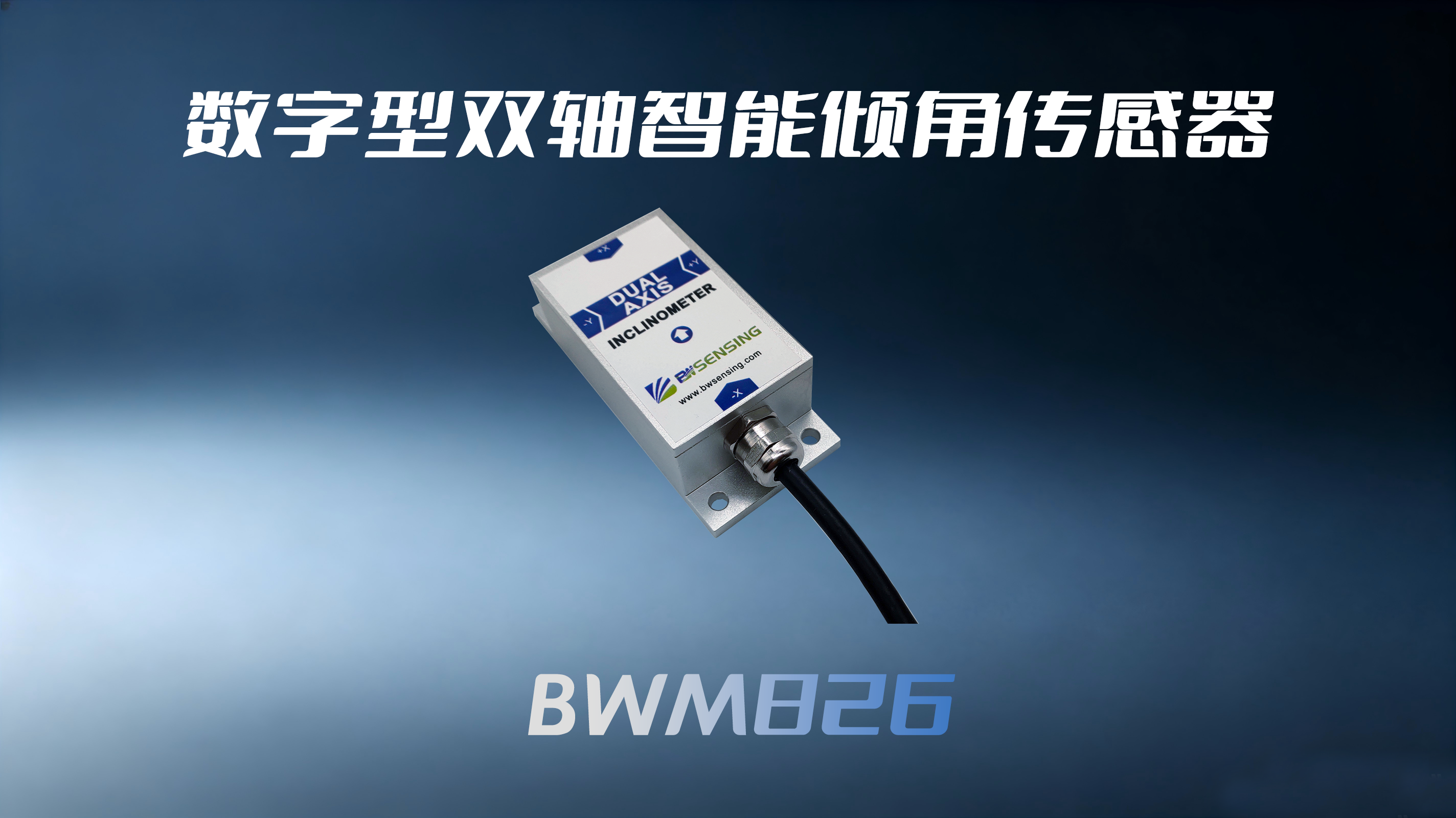

Digital Dual-axis Intelligent Tilt Sensor

• Accuracy: 0.005°

• Resolution: 0.001°

• Zero-point temperature drift: ±0.001°/°C

•

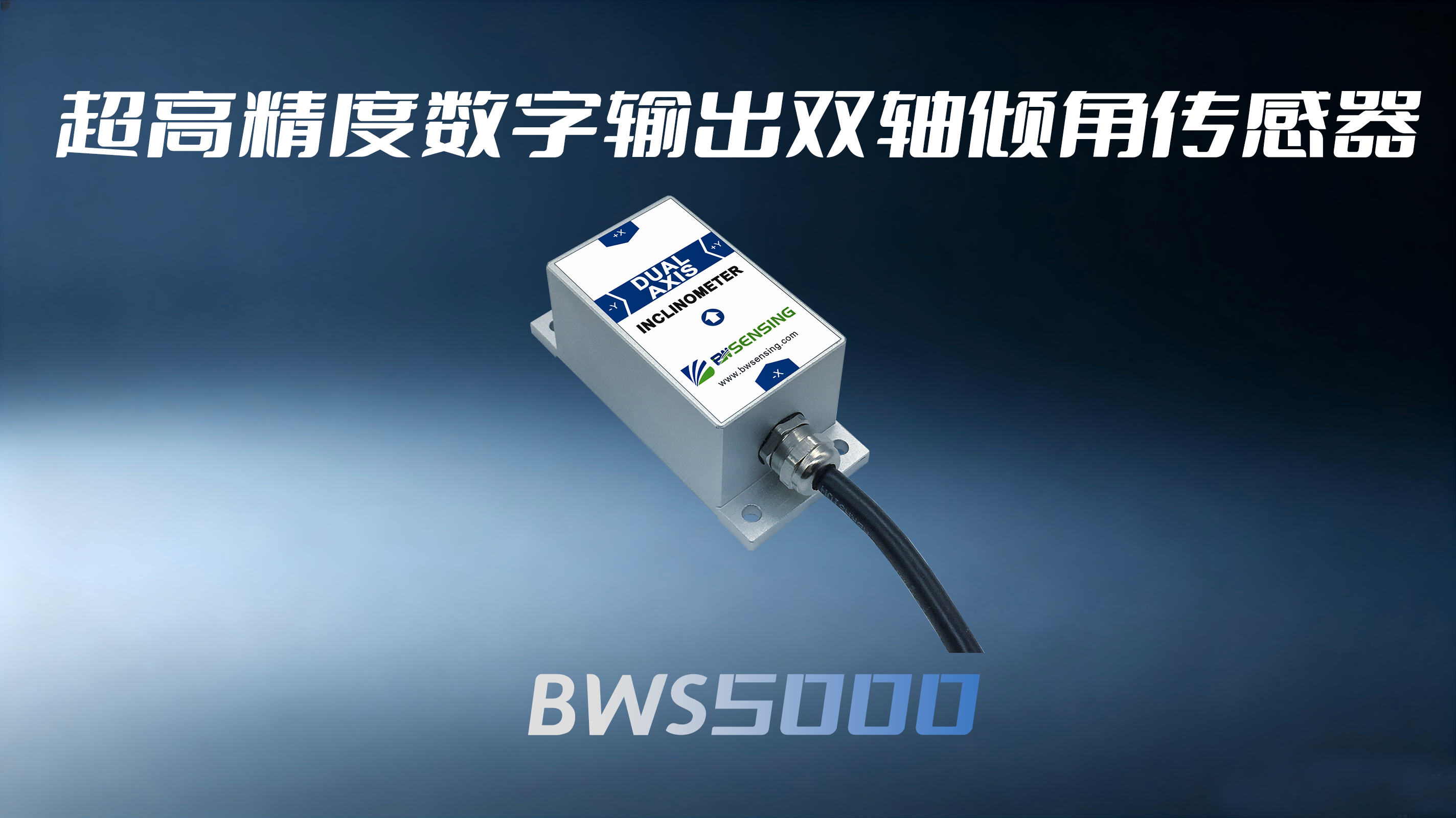

Ultra-high Precision Digital Dual-axis Tilt Sensor

• High accuracy of 0.001°, temperature drift 0.0003°/°C

• Dual-axis tilt measurement

• Cross-axis error: 0.001°

•

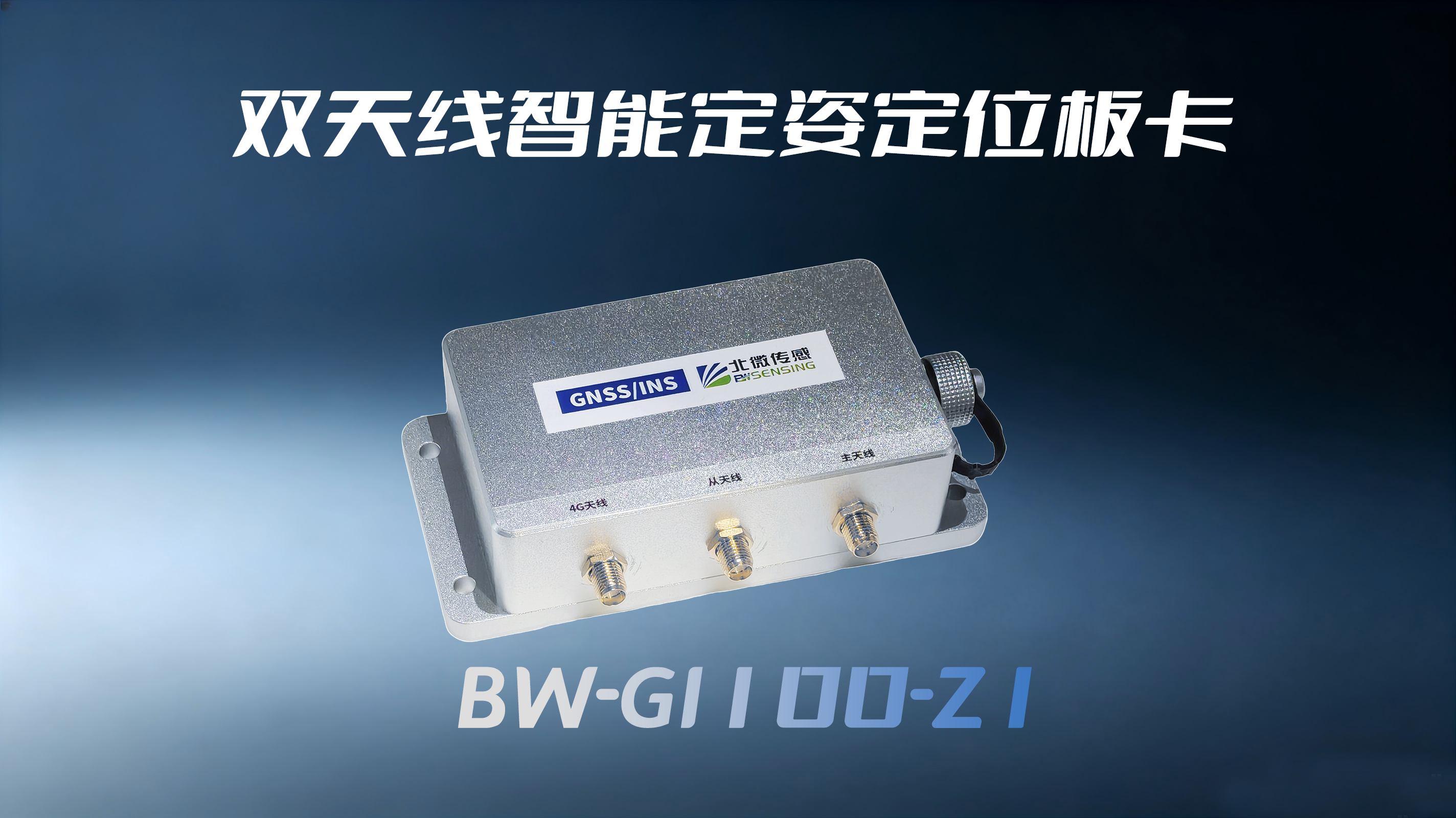

Dual-Antenna Intelligent Positioning & Heading Board

• Supports RTK differential positioning and PPP precise point positioning

• Compatible with multi-frequency high-precision signals from GPS, BDS, GLONASS, Galileo and QZSS constellations

• Integrated design of GNSS, IMU, 4G and computing unit, enables high-frequency synchronous output of position, heading and attitude data

•

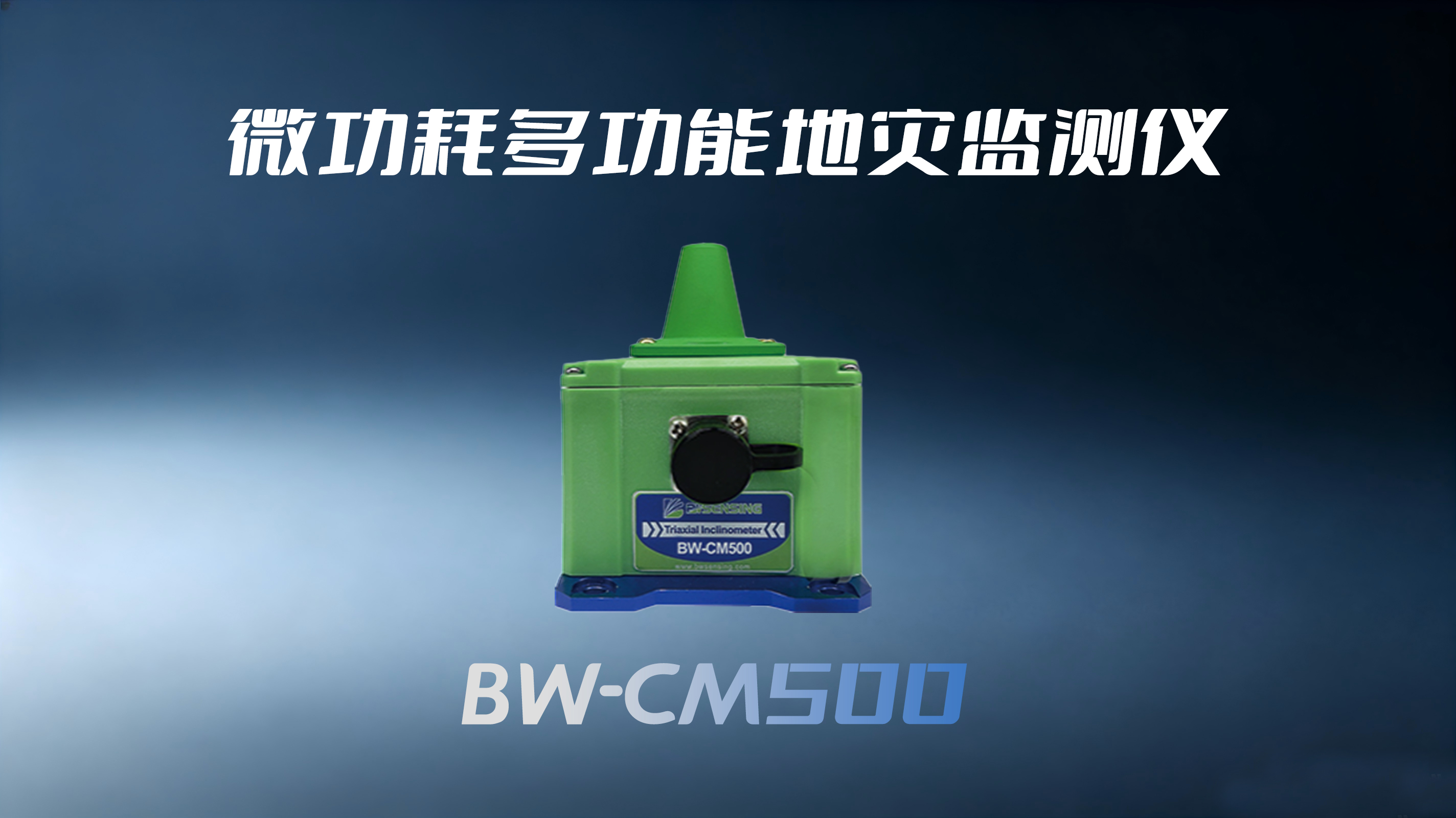

Low-power Multi-function Geohazard Monitoring Instrument

• Triaxial tilt accuracy: 0.005°

• Azimuth accuracy: 0.1°

• 4G full-network communication

•

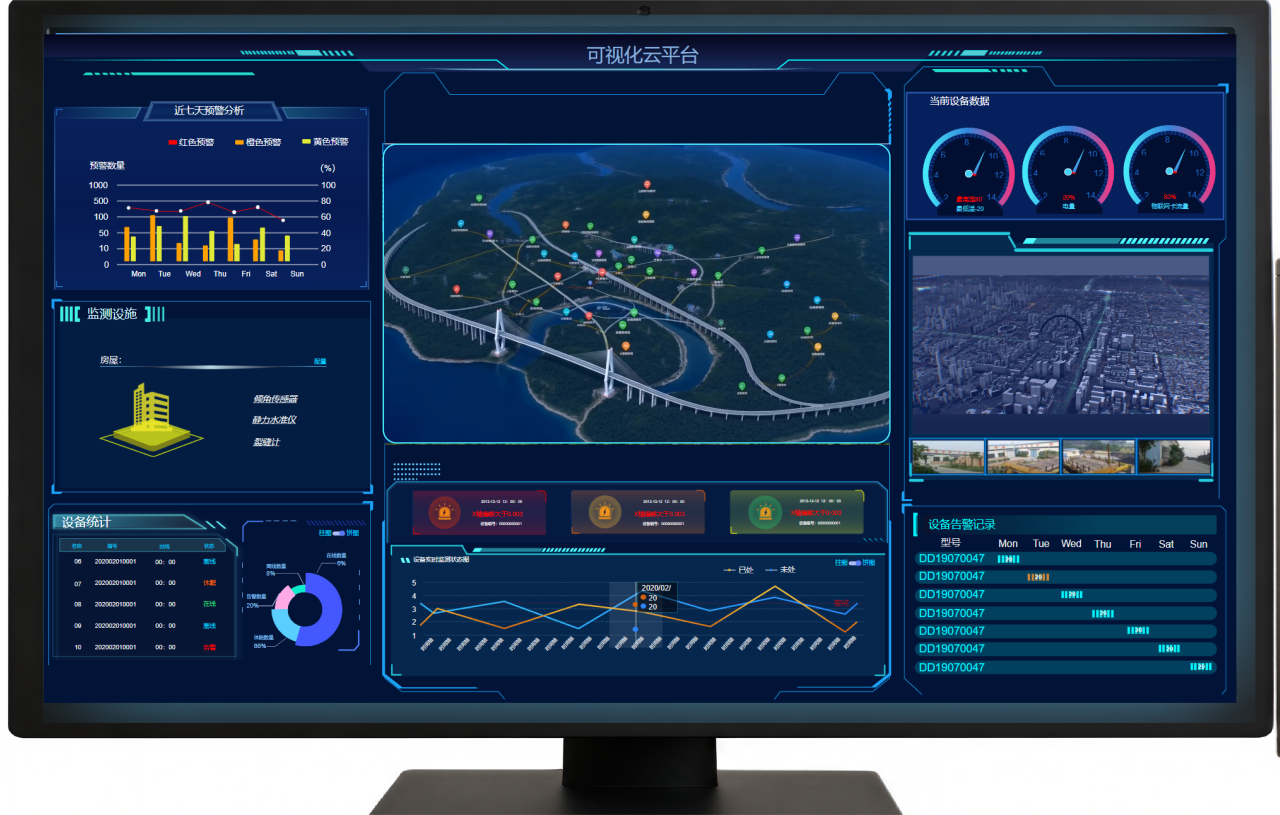

IoT Bridge Cluster Monitoring Platform

Conclusion
