● Single-axis inclinometer measurement
● Resolution: 0.01°
● Voltage input: 9~35VDC

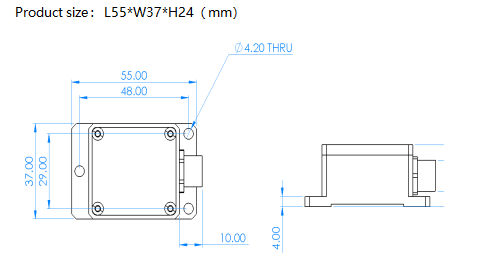

● Product size: L55×W37×H24(mm)
● Accuracy: 0.1°
● Measuring range: ±180°
● IP67 protection
● Output interface: RS232/485/TTL optional
Shared：

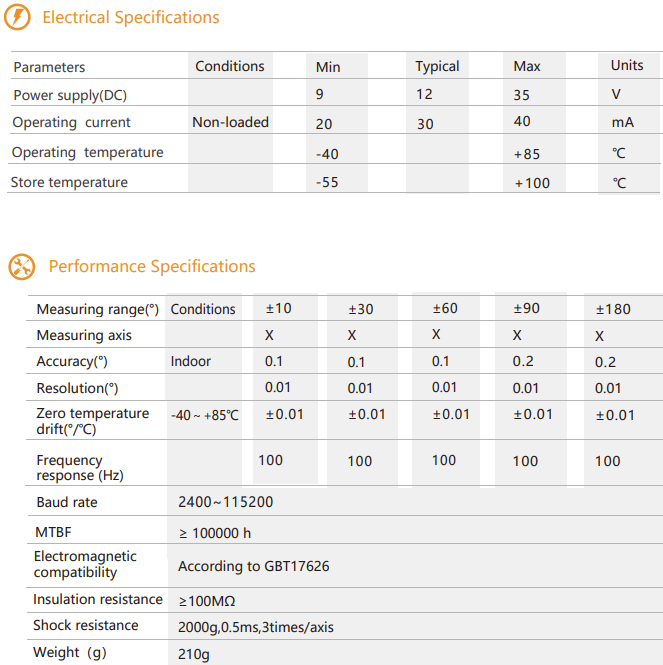

Measurement Range (°)
| Condition | ±180 | |
Measurement axis | X | ||
Accuracy(°) | Room temperature | 0.1 | |
Resolution(°) | Completely still | 0.01 | |
Start-up time | ＜3s | ||
Output frequency (Hz） | 5-100Hz adjustable | Up to 100 | |
Mean time between failures MTBF | ≥90000 h | ||
Electromagnetic compatibility | According to GBT17626 | ||
Insulation resistance | ≥100 MΩ | ||
Impact resistance | 2000g，0.5ms，3times/ axis | ||
Weight (g） | 210（ Without outer packaging ） | ||
-
