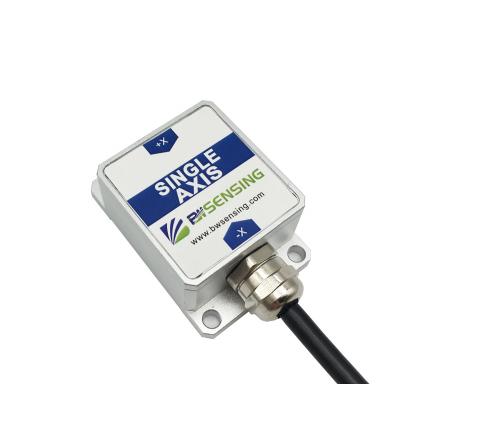

● Single axis tilt measurement
● Resolution: 0.01°
● Power supply: 9-36V
● Volume ：L55*W37*H24（mm）
● Highest accuracy ：0.1°
● Range ：±180°
● Output ：RS232/RS485/TTL for optional
● IP67 protection level.
Shared：
Measurement Range (°) | Condition |
| ±30 |
|
|
Measurement axis |
| X-Y |
|
| |
Accuracy (°) | Room temperature |
| 0.1 |
|
|
Resolution (°) | Completely still |
| 0.01 |
|
|
Zero bias (°/℃) | -40 ~85℃ |
| ±0.02 |
|
|
Cross axis error (°) | -40~85℃ |
| 0.1 |
|
|
Start-up time |
| ＜ 50ms |
|
| |
Output frequency ( Hz） | 5-100Hz adjustable |
| Up to 100 |
|
|
Mean time between failures MTBF | ≥90000 h | ||||
Electromagnetic | According to GBT17626 | ||||
Insulation resistance | ≥100 MΩ | ||||
Impact resistance | 2000g ，0.5ms，3 times/axis | ||||
Weight (g） | 210（without outer packaging） | ||||
-
